StageInfo

Extra info in the stock Stage / Sequence window for Kitten Space Agency.

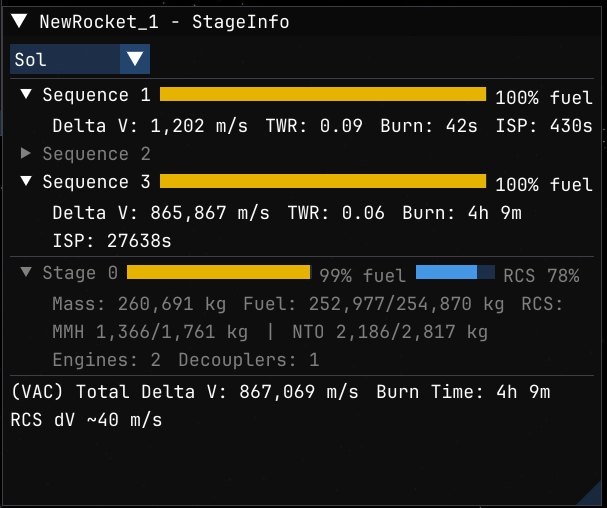

Keeps the stock layout (Sequences on top, Stages below) and augments each row: Sequences get Delta V / TWR / burn time / ISP, Stages get fuel pool / mass / engine count / decoupler count. Adds a totals footer and a multi-stage-aware burn duration.

Features

• Per-sequence Delta V, TWR, burn time, ISP, and fuel fraction on each Sequence row.
• Per-stage fuel pool, mass, engine count, decoupler count on each Stage row.
• Per-stage RCS bar in the stage header next to the fuel bar (blue, turns red below 20%). Substances no active main engine can consume are listed in the expanded stage detail (e.g. MMH 1,180/1,761 kg NTO 1,888/2,817 kg) with a hover tooltip for the full substance name and current/max mass. Shared tanks (e.g. LFOX feeding both the main engine and a vernier thruster) stay on the main fuel bar so nothing is counted twice.
• RCS dV budget as a footer line (RCS dV ~X m/s). Hover for an engineering tooltip listing effective ISP, total propellant, and scalar peak thrust.
• Display modes Auto / VAC / ASL / VAC+ASL / Planning for previewing dV under different ambient conditions (Planning lets you pick any celestial body in the current system).
• Totals footer with total Delta V, planned burn dV, and burn time. Turns red when the planned burn exceeds available dV.

Installation

1. Install StarMap.
2. Extract the SpaceDock zip into Documents\My Games\Kitten Space Agency\mods\StageInfo\.
3. The game auto-discovers new mods on next launch.

Dependencies

License

MIT. Source code, issue tracker, full changelog: https://github.com/Maximilian-Nesslauer/KSA-StageInfo

Forum thread: https://forums.ahwoo.com/threads/stageinfo.905/
